The Original Snake Mate^TM

                                   from Doyle Instruments

Our Customers include: United States Coast Guard, Lockheed Martin, University of Maine ( and many other Universities) US Fish & Game, Production companies and more!

Price Reduction!
Click here to see a video of the Snake Mate in action..........

             Video #2 Retreiving sunglasses dropped overboard

            Video #3 Zinc & Prop Inspection!

 Click here for a video of the Snake Mate in action....

Snake Mate™ by Doyle  Instruments

Water-proof  borescope inspection camera with detachable recordable wireless color LCD monitor.

LCD monitor can also  be viewed offline on your computer or TV.

Monitor and Grip body are not water proof - camera and articulating arm are water-proof to 10 feet.

Specifications:

• Allows for easy visual inspections in hard to reach areas
•  3.5 TFT-LCD wireless recordable monitor with rechargeable Li-battery                                         (This is the biggest viewer in its category and it’s wireless)
• 2GB SD memory card included
• Water-proof camera with 1m (3.28’) flexible extended waterproof tube (water-proof to 10 feet)

             Extra 1m shaft included for a total of 2m (6.5 feet)

• Night Vision Range: 1.5m
• Waterproof Level: IP67 Standards
• 3 useful accessories included: hook, mirror and magnet. Great for grabbing a line or wire,    looking sideways, or picking something up from down in the bilge
• Strong lightweight handgrip design makes it easy to handle while diagnosing and solving problems


·     Power Supply: 4 x AA  quick change-out at the bottom of the handle

·     Rechargeable Lithium-Ion viewer

·     110v charger for the viewer

·     Image Sensor: CMOS

·     Total Pixels: 704—576 (PAL); 712—486(NTSC)

·     Horizontal View Angle: 50 degree

·     Transmission Frequency: 2468MHz

·     Minimum Illumination: 0 Lux

·     Modulation Type: FM

·     Bandwidth: 25MHz

·     Dimensions (W x D x H): 186 x 145 x 41(mm) (excluding flexible shaft)

·     LCD Screen Type: 3.5 inch TFT-LCD

·     Video System: PAL/NTSC

·     Consumption Current (Max): 450mA

·     Operating Humidity (Max.): 15 to 85%RH

·     Language Options:  English, French, German, Italian, Russian, Spanish, Portuguese

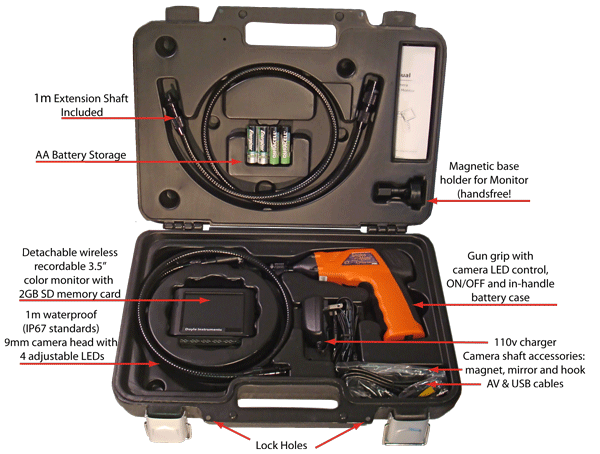

·     Hard Case included

Bonus Upgrades!   9mm Camera Tip now included!

Pole mount and strap for camera tip control underwater - included!

Additional extension shafts are available - extendable to 30 feet!

9mm camera head on 3ft shaft - get it now!

1m extension shaft - plug and play - fits on to your other extensions or directly to the video gun - need another 3.3 feet? click here..

5m extension shaft - drop something off the dock? - need a good long look down your Mast? Add this 5m waterproof extension to your Snake Mate accessories - over 16 feet!
